Tungsten carbide manufacturer in India · Since 1989

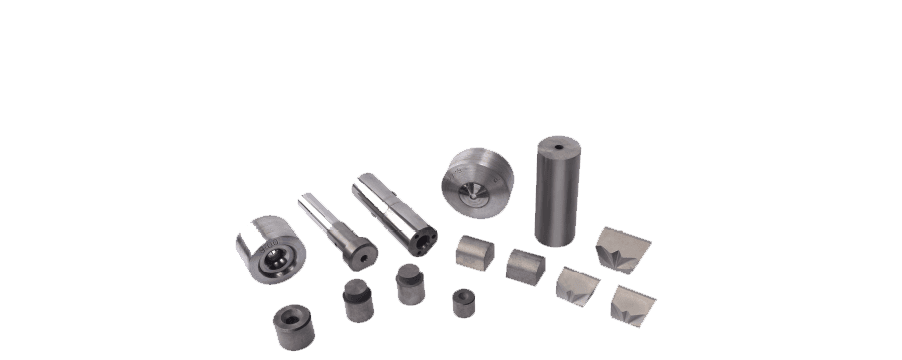

Carbide India manufactures tungsten carbide tools in Nashik — cutting tool inserts, mining buttons and inserts, heading and wire-drawing dies, tungsten copper and wear parts. The complete lifecycle under one roof: powder metallurgy, precision pressing, 1,450 °C sintering and diamond grinding to micron tolerance.
- 25 MT
- Annual production capacity
- 1,450 °C
- Peak sintering temperature
- 08
- Stages under one roof
- ± 0.005 mm
- Ground tolerance
Supplied to
Carbide that leading manufacturers already run on.
A selection of the engineering, steel, defence and atomic-energy organisations we supply — in India and abroad.
Defence & atomic energy
Indian ordnance factories · HAL · BARC
Steel, wire & rope
Mittal Group · Brunton-Wolf Wire Ropes
Engineering & industrial
Titan · NTB · KLR Industries
- Extreme precision
- Maximum durability
- Extended tool life
- 25 MT annual capacity
- ±0.005 mm ground tolerance
- 1,450 °C sintering
- 100% in-house process
- Powder to product
01 — Core capabilities
The Carbide Standard.
Four principles, machined into everything we ship — from a single prototype insert to a year-long production contract.
P/01
Extreme Precision
Diamond grinding and CMM-verified geometry hold micron-level tolerances across every batch — flatness, parallelism, and edge integrity included.
TOL ±0.005 MM
P/02
Maximum Durability
Fully densified WC–Co structures deliver extreme hardness and heat resistance for continuous heavy-duty service in abrasive environments.
HARDNESS ≤ 91.5 HRA
P/03
Extended Tool Life
Grades tuned to your duty cycle cut downtime and replacement frequency — return on investment you can measure in uptime.
TOOL LIFE UP TO 3×
P/04
Enterprise Scale
25 metric tonnes of annual capacity with batch-level traceability — from first prototype to sustained production, without switching vendors.
25 MT / YEAR
02 — Process

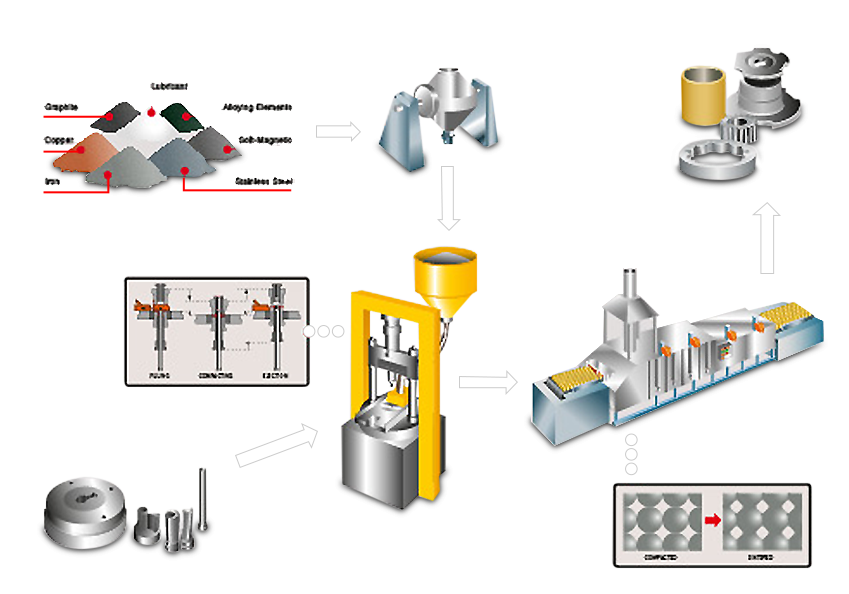

Powder to product.
Eight stages. One roof.
Full batch traceability across all eight stages — from first consultation to final quality control, documented every step of the way.
Consultation → R&D → Pressing →
Pre-Sintering → Forming → Sintering →
Grinding → Quality Control
ST/01 — Stage 1 of 8
Consultation
Application engineering starts before the first gram of powder is weighed. We review drawings, duty cycles, and failure modes to lock the right geometry and grade.
- DFM review
- Grade selection
- NDA on request
Consultation
Application engineering starts before the first gram of powder is weighed. We review drawings, duty cycles, and failure modes to lock the right geometry and grade.
- DFM review
- Grade selection
- NDA on request
R&D
Our in-house metallurgical lab validates grade chemistry, grain structure, and binder ratio against your application’s load case before production begins.
- Grain 0.5–6 µm
- Custom binder %
Pressing
Tungsten carbide powder is compacted in precision dies under hydraulic pressure into dimensionally stable green compacts.
- Up to 200 T
- Multi-cavity dies
Pre-Sintering
Compacts are pre-sintered in a controlled atmosphere — soft enough to machine, stable enough to hold geometry.
- Controlled atmosphere
- Green strength
Forming
Pre-sintered blanks are turned, milled, and drilled to near-final geometry — with sintering shrinkage compensated to the micron.
- CNC green machining
- Shrinkage-compensated

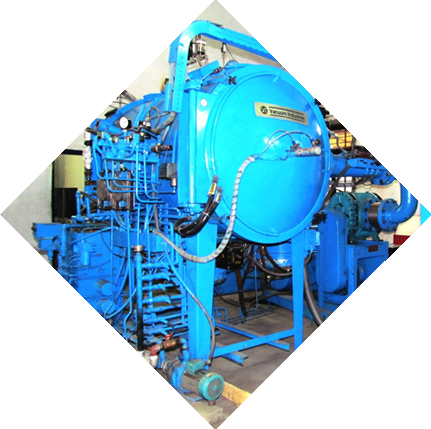

Sintering
Liquid-phase sintering at 1,450 °C fuses carbide and binder into a fully dense, void-free structure — the moment powder becomes carbide.
- 1,450 °C
- H₂ / vacuum
- Full densification
Grinding
Diamond-wheel grinding brings every face, radius, and cutting edge to final tolerance and mirror finish.
- ±0.005 mm
- Ra 0.2 µm
Quality Control
Every batch ships with dimensional and metallurgical certification — hardness, density, microstructure, and geometry, fully traceable.
- CMM verified
- Batch traceability
03 — Industries
Built for the hardest jobs on earth.
Application-engineered tooling for sectors where failure is expensive and downtime is measured by the hour.
SEC/01
Mining & Excavation
Heavy-impact tooling for rock, ore, and earth — engineered to survive abrasion that destroys ordinary steel in hours.
- Drill bits & button tips
- Auger tips
- Rock excavation tools
- Crusher wear segments
SEC/02
Heavy Manufacturing & Automotive
Cutting and forming tooling that holds its edge across millions of cycles on high-volume production lines.
- Cutting tool inserts
- Metal-forming broaches
- Cold-heading dies
- Draw punches
SEC/03
Aerospace, Power & Electronics
Specialised tungsten-copper components where arc erosion resistance and thermal conductivity are non-negotiable.
- WCu EDM electrodes
- Switchgear contacts
- Arcing tips & contact faces
- Heat-sink bases
SEC/04
Process Industries
Ultra-reliable custom wear parts for petroleum and chemical plants, where an unplanned shutdown costs more than the part ever will.
- Mechanical seal rings
- Industrial nozzles
- Valve trim & seats
- Bushings & sleeves
PRD — Products
Seven families, from our own powder.
Mining buttons to gauge blanks — each family with published sizes, grades and the guidance to choose between them.

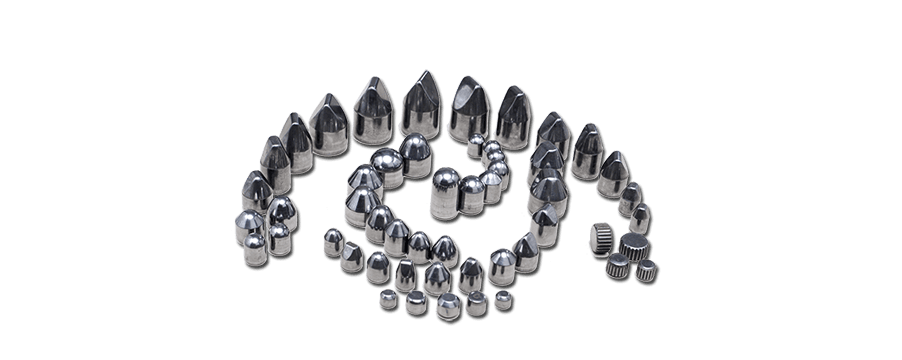

PRD/01

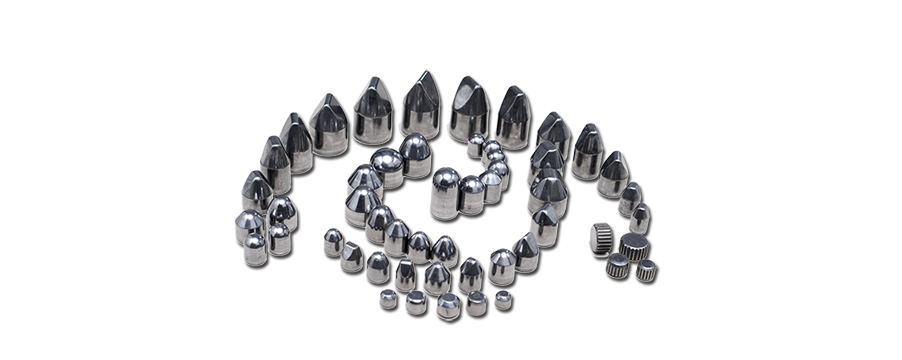

Mining Inserts & Buttons
- 96 sizes
- 9 types
- 6–14% Co
PRD/02

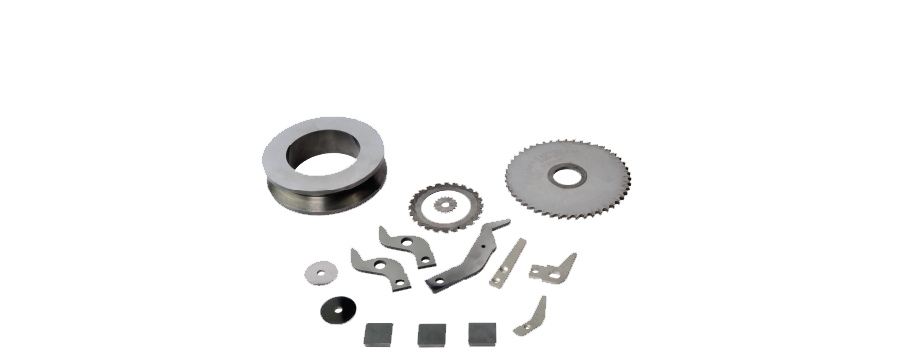

Cutting Tool Inserts
- 3 grades
- 91 HRA
- To drawing
PRD/03

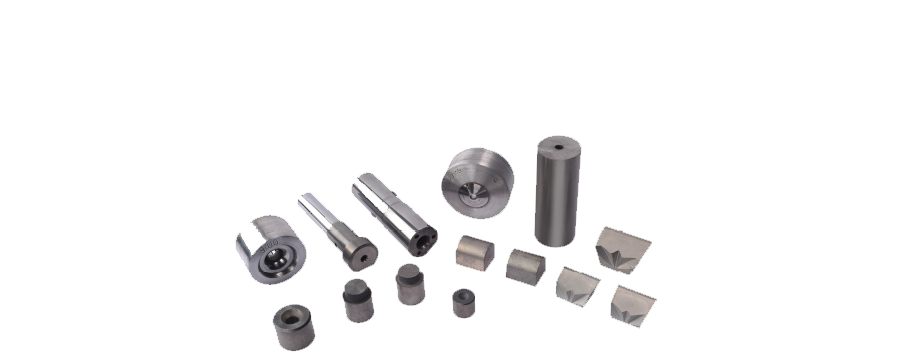

Dies & Metal Forming
- Up to 25% Co
- Pre-ground
- Sub-micron
PRD/04

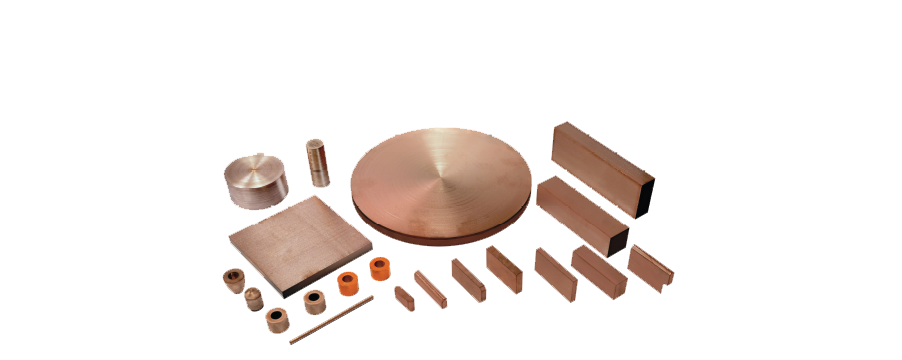

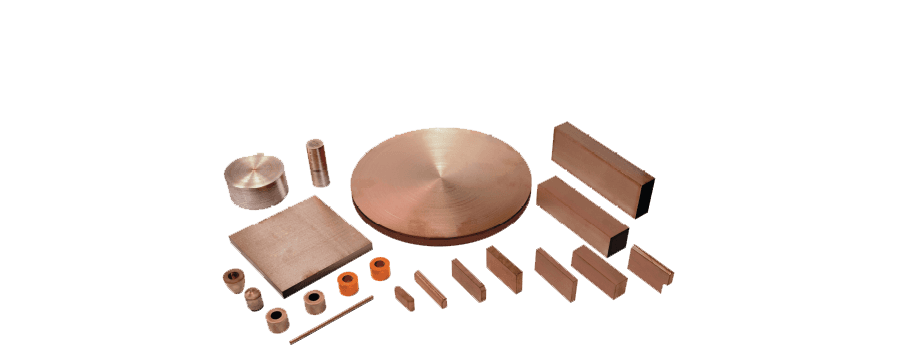

Tungsten Copper
- W60–W80
- 30–50% IACS
- Machinable
PRD/05

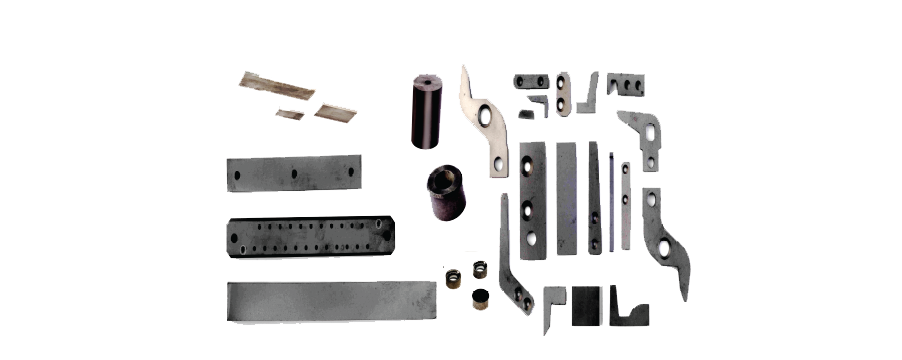

Wear Parts
- Custom sizes
- Lapped faces
- Express

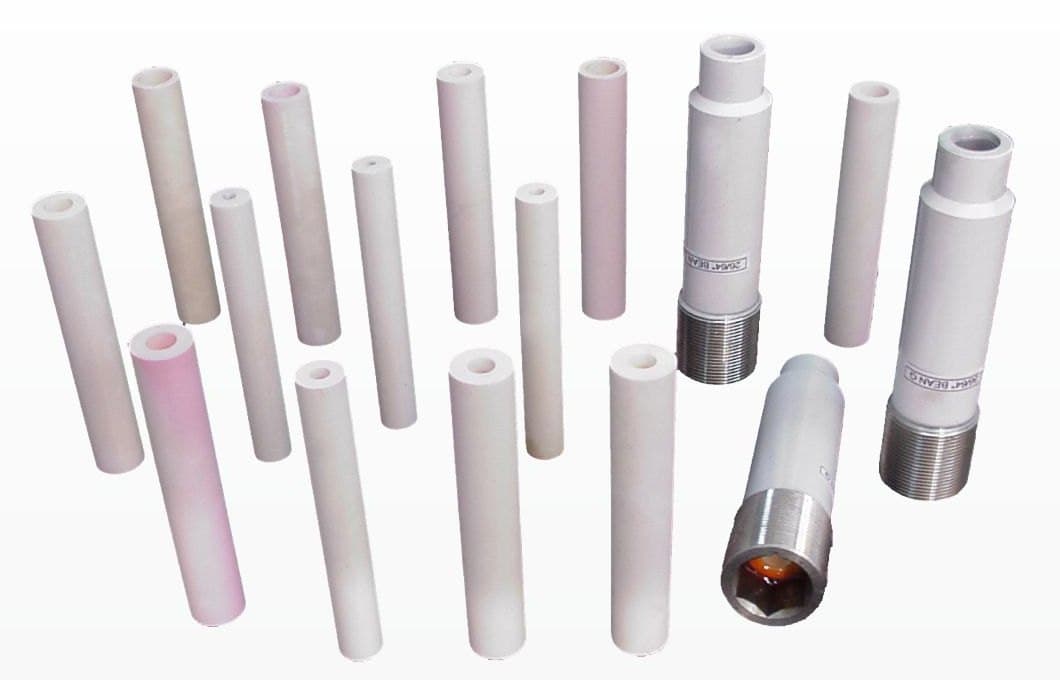

PRD/06
Choke Beans, Stems & Seats
- 4 choke makes
- 1/64″ sizing
- WC–Ni

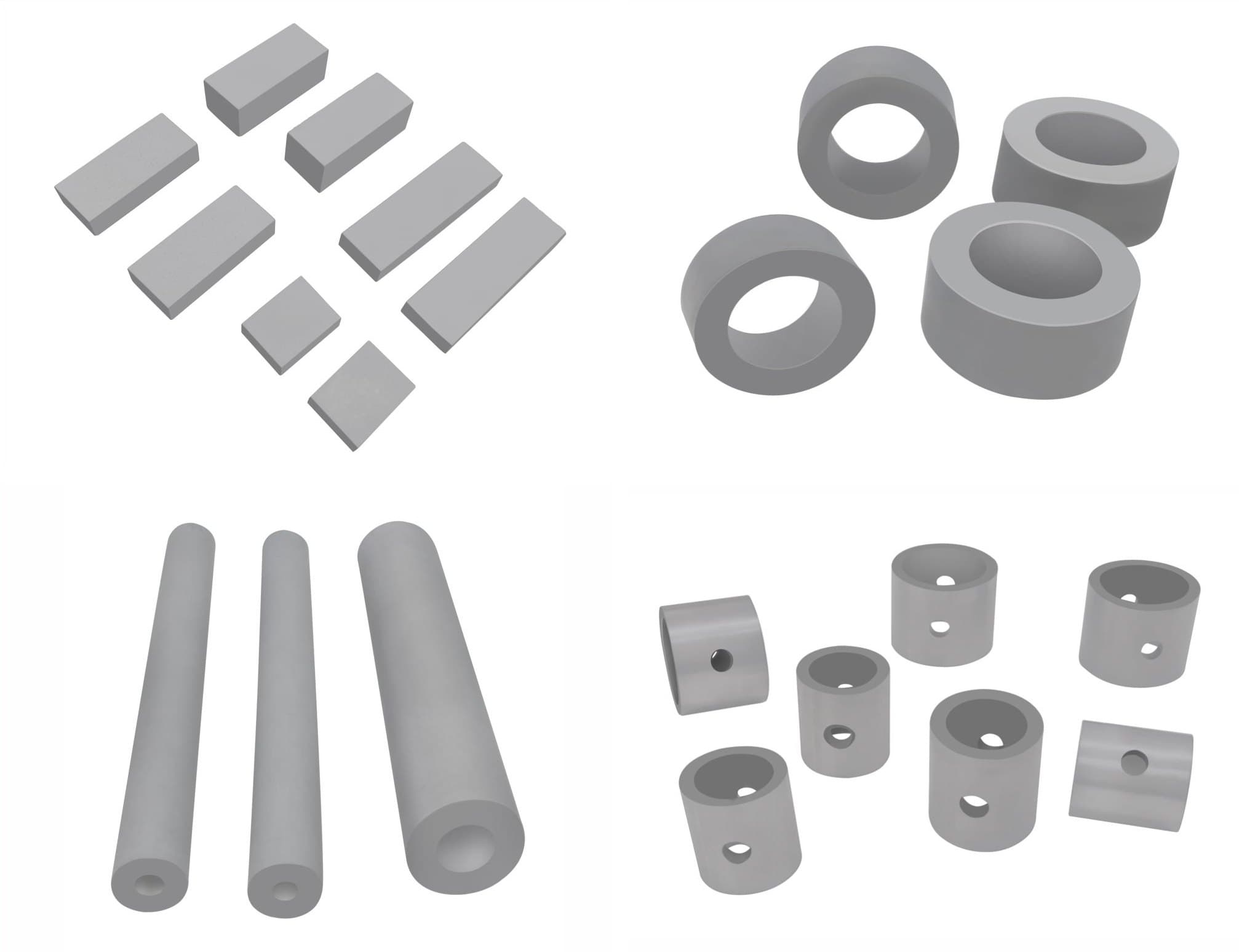

PRD/07
Gauge Components
- 15-day delivery
- Any batch
- Batch-coded
04 — Materials
Grades engineered, not picked off a shelf.
Binder content, grain size, and hardness balanced against your load case — then certified on every batch that leaves the furnace.
| Grade | WC grain | Cobalt % | Hardness (HRA) | Density (g/cm³) | TRS min (N/mm²) | Typical application |
|---|---|---|---|---|---|---|
| CIW06 | Medium | 6 | 89.5 | 14.90–15.00 | 2,400 | High wear resistance |
| CIW08 | Medium | 8 | 88.5 | 14.68–14.78 | 2,500 | Wear resistance, wire drawing dies |
| CID08 | Coarse | 8 | 88 | 14.70–14.80 | 2,550 | Mining, rock drilling and boring |
| CID10 | Coarse | 9.5 | 87 | 14.50–14.60 | 2,600 | Mining, rock drilling and boring, powder compaction tooling |
| CID14 | Coarse | 14 | 86 | 14.05–14.20 | 2,800 | Metal forming — deep, bar, tube and can drawing |
| CID25 | Coarse | 25 | 82.5 | 13.06–13.18 | 2,650 | High-impact parts like heading dies |
| CIF06 | Extra fine | 6 | 91 | 14.88–15.00 | 3,100 | Metal cutting, drawing plugs, shot-blasting nozzles, asbestos sheet cutting |
| CIF10 | Extra fine | 10 | 90 | 14.45–14.55 | 3,250 | Plastic granule cutting, textile scissors and cutters |
| CIK20 | — | — | 89.8 | 14.75 | 2,000 | Burr blanks, broach cutters, cast iron and general-purpose machining |
Representative values — certified datasheets accompany every batch. Custom grades on request.
What is tungsten carbide? →Full grade chart & tungsten copper grades →05 — Scale
Twenty-five tonnes a year. Documented to the gram.
Enterprise capacity with metrology-lab discipline — the scale to hold your production schedule and the paperwork to prove every batch.
MT / Year
Annual production capacity
- Operator
- Yogeshwar Engineering Pvt Ltd
- Location
- MIDC Ambad, Nashik — MH, IN
- Coordinates
- 19.9975° N, 73.7898° E
- Sectors served
- Mining · Auto · Aero · Process
Plant 01 — Nashik
1,450 °C
Peak sintering temperature
200 T
Hydraulic press capacity
24 H
Engineering response time
100 %
Batch QC coverage
ISO 9001:2015
Certified quality management across the full production chain — from powder intake to dispatch.
100% batch QC
Hardness, density, and microstructure verified on every batch — no sampling shortcuts.
Full traceability
Powder lot to dispatch crate, every stage documented and recallable on demand.
REC — Track record
Proven where failure isn't an option.
From a Himalayan hydropower dam to coin minting and defence manufacturing — Carbide India carbide is already at work in some of the country's most demanding applications.
REC/01
Koldam hydropower
Parts used in NTPC's Koldam Dam hydropower project.
REC/02
Mumbai–Pune Expressway
Parts used in building India's first access-controlled expressway.
REC/03
Coin minting
Our products are used to manufacture coins.
REC/04
Indian Army cartridges
Used to make bullet shell cartridges for the Indian Army.
Awards
FASII Award
Federation of Associations of Small Industries of India
Best SSI Unit
State Government
Parkhe Award
Maratha Chamber of Commerce, Pune
M. L. Dahanukar Award
Maharashtra Chamber of Commerce, Mumbai
Exporter & supplier to
USA · Belgium · Italy · UAE · Indonesia
RFQ — 24 h engineering response
Send us your
hardest problem.
Share a drawing, a failing part, or a duty cycle. Our application engineers reply within 24 hours with DFM feedback, a grade recommendation, and a technical quote.
Trusted by Bosch · HAL · Atlas Copco · SECO · Jindal Stainless and more
